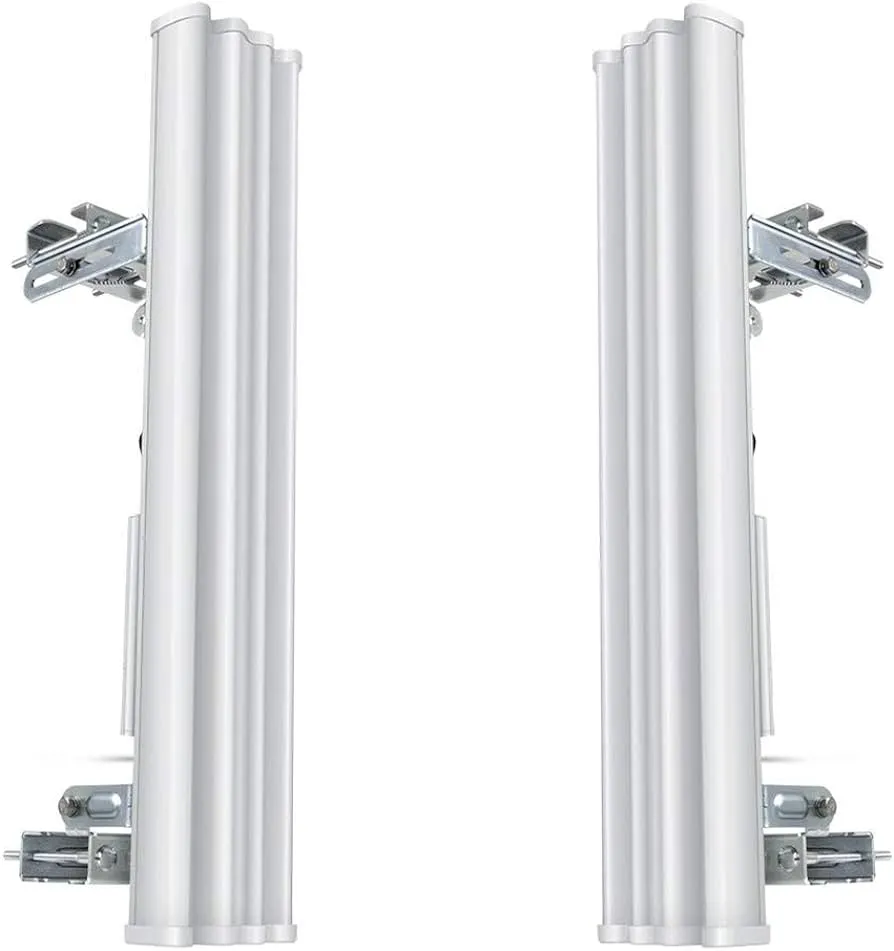

Ubiquiti AM-5G19-120 AirMax 5GHz 19dBi Sector Antenna

Description

Ubiquiti AM-5G19-120 AirMax 5GHz 19dBi Sector Antenna Product Description

The Ubiquiti AM-5G19-120 is a high-performance 5 GHz sector antenna designed for use with Ubiquiti’s airMax series of radios, including Rocket models. This antenna provides 19 dBi gain and features a 120-degree horizontal beamwidth, making it ideal for point-to-multipoint (PtMP) wireless networks, where multiple users or remote locations need to be served by a central access point. The AM-5G19-120 is designed to extend the range of wireless communication while delivering superior signal quality and coverage, ensuring reliable high-speed data transmission over long distances.

With its wide coverage and high gain, the AM-5G19-120 is well-suited for deployments in both urban and rural areas, including use cases such as Wi-Fi access for remote locations, wireless broadband, and backhaul links for ISPs (Internet Service Providers). The antenna utilizes airMax technology to optimize performance, enhance throughput, and mitigate interference, ensuring high-quality connections in dense environments.

The AM-5G19-120 features advanced MIMO (Multiple Input, Multiple Output) technology, which improves the spectral efficiency and capacity of your wireless network. This allows for increased network performance even in challenging environments with high levels of interference. The antenna’s design is optimized for use with Ubiquiti Rocket radios, which can be easily integrated into the system using the included mounting bracket.

The AM-5G19-120 is also built to withstand the elements, with a weatherproof and rugged enclosure that is perfect for outdoor deployments. Whether you’re expanding a network in a rural area, enhancing coverage in a crowded urban environment, or setting up wireless backhaul links between multiple sites, the AM-5G19-120 offers reliable performance, high gain, and wide coverage in a cost-effective package.

Ubiquiti AM-5G19-120 AirMax 5GHz 19dBi Sector Antenna Specifications

• Frequency Range: 5.17 – 5.85 GHz (5 GHz band), ensuring compatibility with various Ubiquiti Rocket radios and other airMax devices.
• Gain: 19 dBi, providing strong signal strength and long-range coverage for point-to-multipoint (PtMP) wireless links.
• Beamwidth: 120 degrees horizontal beamwidth, delivering broad coverage for serving multiple users or locations from a central access point.
• Polarization: Dual-polarized (Vertical and Horizontal), providing high signal quality and reliability even in environments with multiple sources of interference.
• MIMO Technology: 2×2 MIMO (Multiple Input, Multiple Output), allowing for increased spectral efficiency, improved network capacity, and better handling of interference.
• Power Handling: Designed to handle up to 100 W of power, providing the capability to support high-power Rocket radios for improved transmission range and performance.
• Connector Type: N-type female, compatible with most standard 5 GHz wireless radios, including Ubiquiti Rocket M5, Rocket 5AC, and similar models.
• Mounting: Includes a standard pole mounting bracket for easy installation on poles, towers, or other outdoor structures.
• Weatherproof Design: IP67-rated enclosure ensures protection against dust, moisture, rain, snow, and extreme weather conditions for reliable outdoor operation.
• Operating Temperature: -40°C to 70°C (-40°F to 158°F), suitable for use in a wide range of environmental conditions, including hot, cold, and humid climates.
• Dimensions: 468 x 154 x 91 mm (18.43 x 6.06 x 3.58 inches), compact design for easy deployment in various locations.
• Weight: 1.4 kg (3.09 lbs), making it lightweight yet robust enough for outdoor deployments.
• Regulatory Approvals: FCC, CE, and UL certified for compliance with international safety and quality standards.

Key Features and Benefits

• Wide Coverage Area: With a 120-degree horizontal beamwidth, the AM-5G19-120 covers a wide area, making it ideal for point-to-multipoint (PtMP) applications where multiple remote locations need to be connected to a central access point.
• High Gain: The 19 dBi gain provides excellent signal strength, enabling longer-range connections and the ability to cover a larger area or provide high-capacity wireless links.
• Dual-Polarization: Dual-polarized antennas (Vertical and Horizontal) improve signal quality and reduce the impact of multipath interference, ensuring a more stable and reliable wireless connection.
• MIMO Technology: The 2×2 MIMO support improves throughput and capacity, allowing for better performance in high-density environments with many simultaneous users or devices.
• Rugged and Weatherproof: With an IP67-rated enclosure, the AM-5G19-120 is built to handle outdoor conditions, including extreme temperatures, rain, snow, and dust, making it suitable for harsh environments.
• Easy to Install: The included mounting bracket allows for quick and secure installation on poles, towers, or other structures, ensuring the antenna is positioned for optimal coverage.
• Compatible with Ubiquiti Rocket Radios: Designed specifically for use with Ubiquiti’s Rocket radios, the AM-5G19-120 seamlessly integrates into the Ubiquiti ecosystem, providing a scalable and efficient wireless network solution.

Applications

• Point-to-Multipoint (PtMP) Networks: Perfect for ISPs (Internet Service Providers) or businesses that need to connect multiple remote locations or customer sites to a central access point, delivering reliable internet access over long distances.
• Wireless Backhaul: Ideal for setting up high-speed wireless backhaul links between buildings, communication towers, or remote sites.
• Wi-Fi Coverage: Can be used to extend Wi-Fi coverage in large outdoor areas, such as stadiums, campuses, parks, or business parks.
• Public Safety Networks: Deploy the AM-5G19-120 to enhance public safety communications, providing wireless links for emergency services or critical infrastructure.
• Rural Broadband: Provide wireless broadband to rural or remote areas where traditional wired infrastructure may not be feasible or cost-effective.
• Campus Networks: Extend coverage across large campus areas for uninterrupted wireless connectivity in universities, offices, or industrial sites.

Why Choose the Ubiquiti AM-5G19-120?

The Ubiquiti AM-5G19-120 AirMax 5GHz 19dBi Sector Antenna is the perfect choice for anyone looking to deploy a high-performance wireless network with wide coverage and high throughput. Whether you’re an ISP providing broadband to multiple clients, a business extending your network coverage, or a service provider building wireless backhaul infrastructure, the AM-5G19-120 offers the performance, range, and reliability you need for successful deployments.

With its high gain, 120-degree beamwidth, and advanced MIMO technology, the AM-5G19-120 ensures efficient use of spectrum, even in high-interference environments. The weatherproof design makes it suitable for deployment in extreme weather conditions, and its easy installation process allows for quick setup.

If you’re looking for a robust sector antenna to help scale your wireless network, the AM-5G19-120 provides excellent value for money and is a key component for delivering high-quality wireless service over large areas.

For more information or to purchase the Ubiquiti AM-5G19-120 AirMax 5GHz 19dBi Sector Antenna, visit www.radox.co.ke.
