MikroTik RouterBOARD RBcAPGi-5acD2nD (cAP ac) – 5GHz Ceiling Access Point

Description

MikroTik RouterBOARD RBcAPGi-5acD2nD (cAP ac) – 5GHz Ceiling Access Point

The MikroTik RouterBOARD RBcAPGi-5acD2nD (commonly known as cAP ac) is a high-performance ceiling-mounted wireless access point designed to deliver dual-band Wi-Fi at 5 GHz and 2.4 GHz frequencies. This model is part of the MikroTik cAP (Ceiling Access Point) family and provides robust connectivity with features typically found in higher-end devices but at a competitive price. It is ideal for environments that require reliable wireless coverage without complex configurations.

Key Features and Benefits

1. Dual-Band Wi-Fi (2.4 GHz and 5 GHz)

• The RBcAPGi-5acD2nD supports dual-band Wi-Fi, operating on both 2.4 GHz and 5 GHz frequencies. This allows for faster speeds and less interference, with the 5 GHz band offering higher throughput and reduced congestion.
• With the 802.11ac standard (also known as Wi-Fi 5), the 5 GHz band can support faster data rates, while the 2.4 GHz band provides wider coverage and better penetration through walls and obstacles.

2. Ceiling-Mountable Design

• The RBcAPGi-5acD2nD is designed to be ceiling-mounted, providing a sleek, discreet installation. This mounting style is ideal for large or open spaces, as it optimizes coverage by distributing the Wi-Fi signal evenly across the area.
• The compact design helps it blend into its surroundings, making it a great choice for offices, schools, cafes, and other public venues.

3. Power over Ethernet (PoE)

• The RBcAPGi-5acD2nD is powered via PoE (Power over Ethernet), which means you can deliver both power and data over a single Ethernet cable. This eliminates the need for a separate power outlet and reduces cable clutter.
• The device is compatible with 802.3af/at PoE, so you can use a PoE injector or a PoE-enabled switch to power the access point.

4. RouterOS Operating System

• The RBcAPGi-5acD2nD runs on RouterOS, MikroTik’s powerful and versatile operating system. RouterOS gives users the ability to configure a wide range of advanced network settings, including:
  • Advanced Security: WPA2 encryption, VPN, firewall configurations, and more.
  • VLAN Support: Network segmentation for better traffic management and security.
  • Hotspot Management: Built-in hotspot features for guest Wi-Fi access.
  • Traffic Shaping and Quality of Service (QoS): Allows for optimizing network performance.

5. Efficient Antenna Design

• The RBcAPGi-5acD2nD features two built-in 2.4dBi antennas (for both 2.4 GHz and 5 GHz bands) that provide excellent wireless coverage with minimal interference.
• The ceiling-mounted design maximizes the wireless signal, ensuring a stable and strong connection throughout the area.

6. Multi-Mode Operation

• The cAP ac is highly flexible, offering various operating modes:
  • Access Point (AP): To provide wireless coverage for users.
  • Station (Client): To connect to an existing Wi-Fi network.
  • Bridge Mode: To extend the network wirelessly.
  • AP Bridge Mode: Allows for bridging networks with other access points.
• These modes ensure that the cAP ac can be adapted to different network configurations and use cases.

7. Easy Setup and Management

• The cAP ac can be managed via:
  • WinBox: MikroTik’s desktop management tool.
  • WebFig: A browser-based graphical user interface.
  • Command Line Interface (CLI): For advanced users.
• Zero-touch provisioning allows the device to be deployed quickly and configured remotely, making it ideal for remote installations or large-scale deployments.

8. Affordable Price Point

• The cAP ac offers enterprise-level features at a cost-effective price, making it suitable for small to medium businesses, educational institutions, or homes that need solid wireless performance without the high cost of enterprise-grade solutions.

Specifications

• Wireless Standards: 802.11a/b/g/n/ac (Wi-Fi 5)
• Frequency Bands: Dual-band 2.4 GHz and 5 GHz
• Wi-Fi Speed:
  • 2.4 GHz: 400 Mbps
  • 5 GHz: 866 Mbps
• Antenna: 2 x 2dBi internal antennas (dual-band)
• Ethernet Ports: 1 x Gigabit Ethernet port (RJ45)
• PoE In: Yes, 802.3af/at (PoE)
• Power Supply: 10-30V DC, powered via PoE
• Max Power Consumption: 7W
• Dimensions: 200mm x 200mm x 35mm
• Mounting: Ceiling mountable
• Operating System: RouterOS
• Security: WPA2, WPA3, 802.1X, VLAN, Firewall, VPN
• Software Features: Traffic shaping, QoS, Hotspot, Firewall, VPN

Use Cases and Applications

1. Offices and Small Businesses:

   • Ideal for creating a wireless network in small to medium-sized offices. The ceiling mount helps distribute the Wi-Fi signal evenly, ensuring consistent coverage throughout workspaces.

2. Retail and Hospitality:

   • Perfect for cafes, restaurants, hotels, or retail stores looking to provide reliable wireless connectivity for guests. The PoE support simplifies installation, especially in areas where power outlets are limited.

3. Public Venues:

   • The cAP ac is well-suited for venues such as libraries, museums, or waiting areas, where visitors need access to a fast and secure Wi-Fi network.

4. Home Networks:

   • In homes that require high-performance wireless across larger areas, the dual-band capabilities and RouterOS management features make the cAP ac an excellent choice for users who need stable, secure, and high-speed Wi-Fi.

5. Educational Institutions:

   • Schools and universities can use the RBcAPGi-5acD2nD to provide reliable Wi-Fi coverage for classrooms, libraries, and common areas, ensuring seamless connectivity for students and faculty.

Installation and Setup

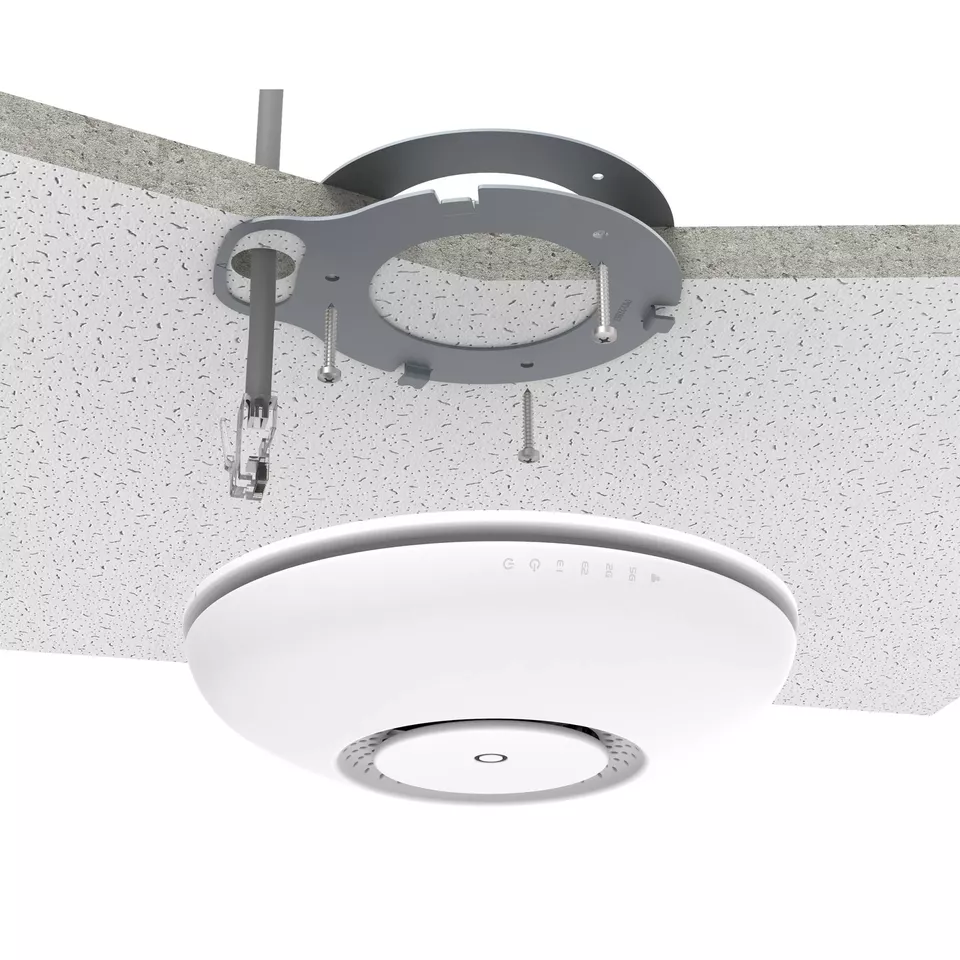

1. Mounting:

   • The RBcAPGi-5acD2nD is designed for easy ceiling installation. The mounting bracket is included, making the setup process quick and simple. The device can be installed in ceilings, walls, or other elevated areas to optimize coverage.

2. Power over Ethernet (PoE):

   • Using PoE, the RBcAPGi-5acD2nD requires only a single Ethernet cable to supply both power and data, reducing the need for additional power cables and outlets.

3. Configuration:

   • The device is configured using RouterOS via tools like:
     • WinBox: MikroTik’s desktop application for managing network devices.
     • WebFig: A web-based interface for browser management.
     • CLI: The Command Line Interface is available for more advanced users who require more granular control over the device.

4. Zero-Touch Provisioning:

   • For ease of installation, especially in large deployments, zero-touch provisioning is available. This allows the device to be set up remotely with minimal user input, which is ideal for businesses or service providers.

Conclusion

The MikroTik RouterBOARD RBcAPGi-5acD2nD (cAP ac) is a high-performance ceiling-mounted wireless access point that provides dual-band Wi-Fi at an affordable price. With features like PoE support, RouterOS, and dual-band coverage, it’s a versatile and cost-effective solution for businesses, schools, and homes that need reliable and fast wireless connectivity. Whether you’re setting up a small office network, extending coverage in a public venue, or providing Wi-Fi for a retail space, the RBcAPGi-5acD2nD delivers solid performance with easy installation and management.

For more details or to purchase the MikroTik cAP ac, please visit Radox Kenya or check MikroTik’s official website for additional resources and specifications.
