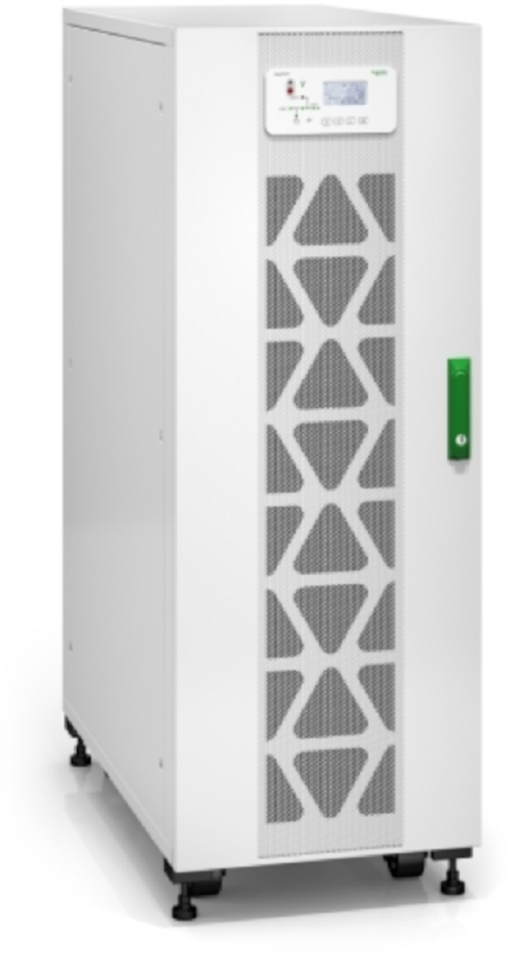

Easy UPS 3S 40 kVA 400V 3:3 UPS

Description

Easy UPS 3S 40 kVA 400V 3:3 UPS

Easy UPS 3S 40 kVA 400V 3:3 UPS is a highly efficient, compact, and modular uninterruptible power supply from Schneider Electric, tailored for medium-sized data centers, light industrial environments, commercial buildings, and healthcare or telecom installations. Built on the principle of reliability, scalability, and simplicity, it ensures secure, clean, and continuous power for mission-critical applications.

This Easy UPS 3S 40 kVA 400V 3:3 UPS delivers a robust 40 kVA / 40 kW of power with true double-conversion online technology, offering full isolation from utility disturbances such as sags, surges, and blackouts. With 3 internal 7Ah modular VRLA battery strings, the unit is expandable up to 4 internal strings, providing flexibility to scale runtime without needing external battery cabinets. This feature ensures you get more out of your investment while keeping your infrastructure streamlined and space-efficient.

Designed with high serviceability, user-friendly operation, and exceptional power density, the Easy UPS 3S 40 kVA 400V 3:3 UPS is ideal for any organization looking to enhance its uptime, reduce power-related risks, and lower total cost of ownership.

✅ Key Features

• Double-Conversion Online Technology
  Easy UPS 3S 40 kVA 400V 3:3 UPS Continuously conditions power to deliver clean, regulated output regardless of fluctuations in the input supply.

• 3 Pre-installed Modular Battery Strings
  Easy UPS 3S 40 kVA 400V 3:3 UPS Comes with 3 × 7Ah VRLA battery strings. One additional string can be added internally for extended runtime.

• Compact High-Density Design
  Easy UPS 3S 40 kVA 400V 3:3 UPS Offers substantial power output in a compact footprint—ideal for environments with limited space.

• Parallel Capability
  Easy UPS 3S 40 kVA 400V 3:3 UPS Supports up to four units in parallel, either for increased capacity or N+1 redundancy.

• User-Friendly LCD Interface
  A multilingual display provides access to real-time system status, alarms, and configuration settings.

• Serviceability
  Front-accessible maintenance, hot-swappable battery modules, replaceable air filters, and conformal-coated boards for protection in dusty or humid conditions.

• High Efficiency Modes
  Up to 96% efficiency in double-conversion mode, and 99% in ECO mode, reducing energy costs and thermal load.

• Remote Monitoring Ready
  Optional network cards allow SNMP and EcoStruxure™ IT integration for remote diagnostics and management.

🔧 Technical Specifications (Bullet Format)

• Model: E3SUPS40KHB1

• Topology: True double-conversion online

• Rated Capacity: 40 kVA / 40 kW

• Input Voltage: 400V 3-phase (configurable to 380V or 415V)

• Input Voltage Range: 304 – 477V

• Input Frequency: 45 – 65 Hz

• Input Power Factor: ≥ 0.99

• Output Voltage: 400V 3-phase (configurable)

• Output Frequency: 50/60 Hz auto-sensing

• Voltage Regulation: ±1.5%

• THD (Total Harmonic Distortion): < 3% (linear load)

• Bypass: Built-in static and manual maintenance bypass

• Battery Type: VRLA (sealed lead-acid), modular

• Battery Configuration: 3 × 7Ah internal battery strings (expandable to 4)

• Battery Voltage: 240V DC nominal

• Parallel Capability: Up to 4 units

• Display: Multilingual LCD with real-time indicators

• Operating Temperature: 0°C – 40°C

• Relative Humidity: 0 – 95% non-condensing

• Altitude: Up to 1000 m without derating

• Noise Level: Approx. 63 dBA at 1 meter

• Efficiency: 96% (online mode), 99% (ECO mode)

• Enclosure Rating: IP20

• Dimensions (HxWxD): 1400 × 500 × 969 mm

• Weight (without batteries): Approx. 152 kg

• Certifications: CE, EAC, RCM, IEC 62040 compliant

• Warranty: 1-year onsite repair/replacement (terms may vary by region)

💼 Applications

🖥 Data Centers

Protects servers, storage, and networking hardware. Ensures continuous operation during outages, providing scalable battery runtime for growing loads.

🏭 Industrial Facilities

Shields automation systems, PLCs, and motor controllers from electrical noise and power loss.

🏢 Commercial Buildings

Maintains uptime for building automation systems, security controls, point-of-sale systems, and lighting.

🏥 Healthcare

Supports life-critical systems and diagnostic equipment during blackouts, offering fail-safe power transition.

📡 Telecommunications

Keeps telecom switches and base stations operational, even during unstable grid conditions.

📈 Benefits Summary

• Runtime Flexibility: Add up to 4 internal battery strings with no need for bulky external cabinets.

• Lower TCO: High energy efficiency reduces operational and cooling costs.

• Easy Integration: Configurable settings and standard input/output voltage make it adaptable to existing infrastructures.

• Quick Deployment: Factory pre-configured and tested. Minimal installation time.

• Remote Access: Compatible with Schneider EcoStruxure™ for real-time alerts, analytics, and remote control.

• Serviceability: Tool-less front access, air filter replacement, and modular batteries make maintenance safe and quick.

🔚 Conclusion

The Easy UPS 3S 40 kVA 400V 3:3 UPS is a future-ready, space-efficient power protection system designed to support your business-critical operations through voltage anomalies, power interruptions, and infrastructure growth. Its expandable internal battery architecture, high energy efficiency, and robust features make it a compelling solution for data centers, commercial buildings, telecom, and industrial sectors alike.

If you’re looking for a Easy UPS 3S 40 kVA 400V 3:3 UPS that combines intelligent design with real-world dependability and easy scalability, this model offers the ideal balance between cost-efficiency and performance. Invest in peace of mind with Schneider Electric’s proven UPS technology—backed by a global support network and smart remote monitoring options.
