Easy UPS 3S 20 kVA 400V 3:3 UPS

Description

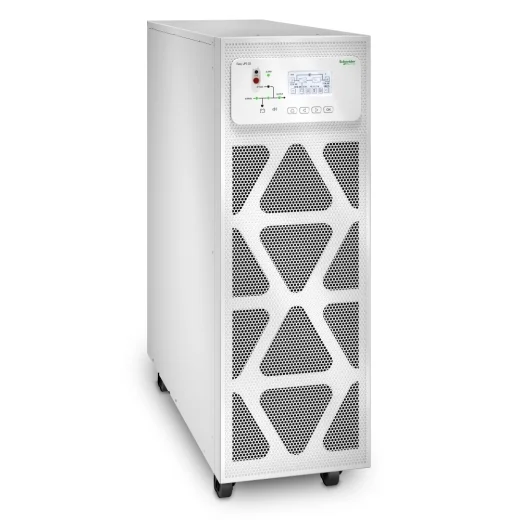

Easy UPS 3S 20 kVA 400V 3:3 UPS

The Easy UPS 3S 20 kVA 400V 3:3 UPS by Schneider Electric is engineered to deliver robust, scalable power protection for medium-sized businesses, data centers, and industrial applications. This UPS combines high energy efficiency, simple installation, and modular battery flexibility—all packaged in a compact footprint suitable for environments with limited space.

Outfitted with two internal 7Ah modular battery strings, the Easy UPS 3S 20 kVA 400V 3:3 UPS ensures solid runtime and resilience. Even better, it is expandable to support a third battery string, giving users the flexibility to tailor backup duration according to their power continuity requirements.

The Easy UPS 3S 20 kVA 400V 3:3 UPS series provides full double-conversion online protection, shielding your sensitive equipment from outages, surges, voltage sags, harmonics, and other power disturbances. With intuitive user interfaces, front-access servicing, and built-in maintenance bypass, this solution prioritizes uptime and ease of use.

Key Benefits

• Optimized for Reliability: Easy UPS 3S 20 kVA 400V 3:3 UPS Double-conversion online technology ensures continuous, clean power even in volatile utility environments.

• Modular Battery Design: Easy UPS 3S 20 kVA 400V 3:3 UPS Comes pre-installed with two modular 7Ah battery strings and is easily expandable to three strings for longer runtime.

• Compact Footprint: Easy UPS 3S 20 kVA 400V 3:3 UPS Ideal for constrained environments such as network closets or remote industrial locations.

• Intelligent Management: Easy UPS 3S 20 kVA 400V 3:3 UPS Includes user-friendly display, remote monitoring options, and scalable runtime configuration.

• Easy Maintenance: Easy UPS 3S 20 kVA 400V Front-access components, replaceable dust filters, and optional parallel support reduce downtime and service complexity.

Specifications

• Model: E3SUPS20KHB1

• Topology: Double-conversion online

• Rated Capacity: 20 kVA / 20 kW

• Input Voltage Range: 304–477 V 3-phase (400 V nominal)

• Input Frequency: 45–65 Hz

• Power Factor (Input): ≥ 0.99 at full load

• Output Voltage: 400 V 3-phase (configurable to 380/415 V)

• Voltage Regulation: ±1.5%

• Output THD: < 3% (linear load)

• Battery Type: VRLA (sealed lead-acid)

• Battery Configuration:

  • 2 × internal modular 7Ah strings

  • Expandable to 3 internal strings

• Battery Voltage: 240 V DC

• Parallel Capability: Up to 4 UPS units

• Bypass Options: Built-in manual maintenance bypass

• Display: Multi-language LCD display

• Communication Interfaces: RS-232, SmartSlot, Ethernet (optional)

• Operating Temperature: 0°C to 40°C

• Relative Humidity: 0% to 95% (non-condensing)

• Altitude: Up to 3,333 ft without derating

• Noise Level: Approx. 60 dBA at 1 meter

• Enclosure Protection: IP20

• Color: White (RAL 9003)

• Dimensions (HxWxD): 1400 × 380 × 928 mm

• Net Weight: ~446 kg

• Certifications: CE, EAC, RCM

• Warranty: 1-year on-site repair or replacement (varies by region)

Use Case Scenarios

🏢 For Businesses

Easy UPS 3S 20 kVA 400V 3:3 UPS Ensures uninterrupted operation of servers, routers, POS systems, and communication equipment. Suitable for corporate IT rooms and retail outlets needing uninterrupted access to data and transactions.

🏭 For Industrial Applications

The robust design and thermal resilience allow this Easy UPS 3S 20 kVA 400V 3:3 UPS to be deployed in light industrial environments, ensuring protection of automation, PLCs, and control systems.

🖥️ For Data Centers

Supports clean, stable power with minimal downtime, and is easily integrated into scalable data center architecture thanks to its modular battery and parallel-ready features.

Final Thoughts

The Easy UPS 3S 20 kVA 400V 3:3 UPS model is a versatile and expandable power protection solution. With built-in batteries and the ability to grow with your runtime needs, it offers both convenience and reliability for mission-critical systems.

Whether you’re upgrading an existing power setup or deploying a new system, the Easy UPS 3S 20 kVA 400V 3:3 UPS is built to adapt to your growing infrastructure—providing clean, efficient, and uninterrupted power when it matters most.
