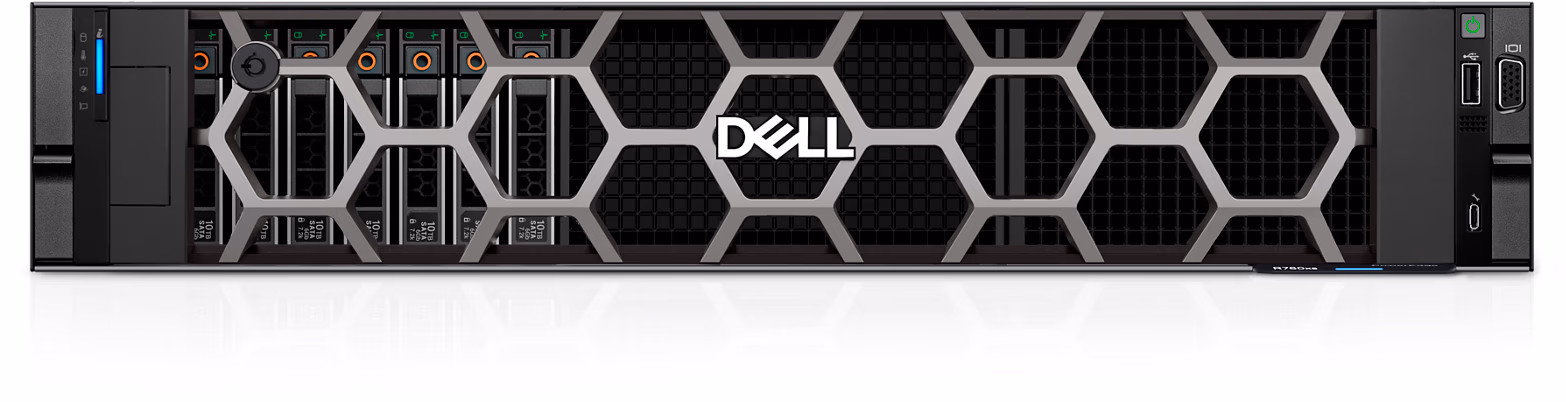

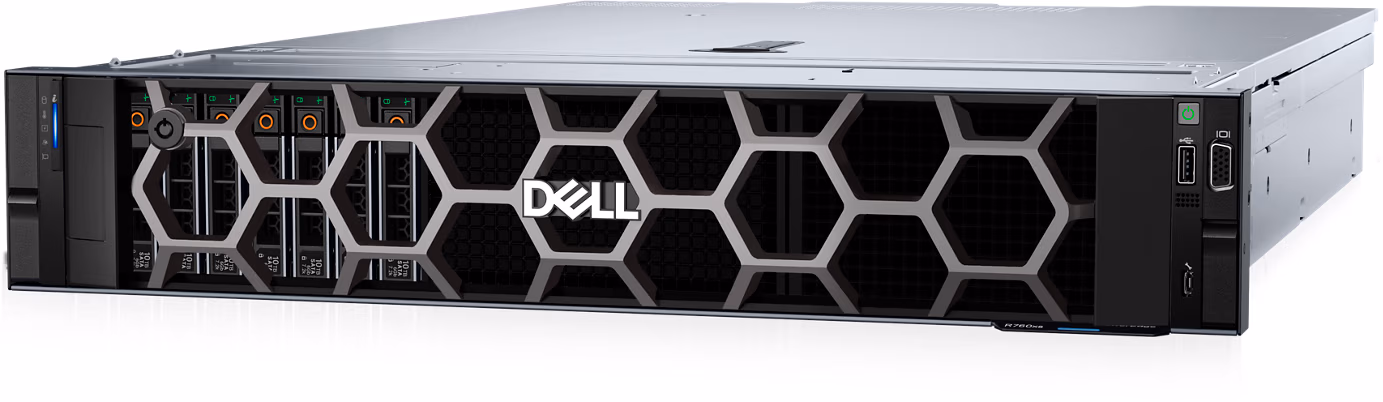

Dell PowerEdge R760xs Rack Server

Description

Dell PowerEdge R760xs Rack Server

The Dell PowerEdge R760xs Rack Server is an exceptional mid-range server designed to meet the demands of diverse workloads, including virtualization, data analytics, and enterprise applications. Engineered for performance, scalability, and reliability, the R760xs is an ideal solution for businesses looking to optimize their IT infrastructure.

Key Features and Design

The R760xs features a sturdy 3.5-inch chassis, which can accommodate up to 12 hard drives (SAS/SATA). This flexibility allows organizations to configure their storage according to specific needs, whether for high-speed access or bulk data storage.

The server is powered by the Intel Xeon Silver 4410Y processor, which boasts 12 cores and 24 threads, enabling efficient multitasking and processing. With a base frequency of 2.0 GHz and Turbo Boost technology, this processor can dynamically adjust its speed to match workload demands, providing up to 16 GT/s of throughput and 30MB cache for enhanced performance.

Memory and Storage

Equipped with 16GB RDIMM DDR5 memory, the R760xs runs at an impressive 4800 MT/s. This single-rank memory can be expanded as needed to accommodate growing workloads, ensuring that your applications have the resources they need for optimal performance.

For storage, the R760xs includes a 2.4TB SAS ISE hard drive (12Gbps, 10K RPM, 512e, hot-plug). This configuration ensures rapid data access and high reliability, which is critical for applications that require continuous data availability. The hot-plug capability further enhances operational efficiency, allowing for seamless upgrades and maintenance without downtime.

Network Connectivity

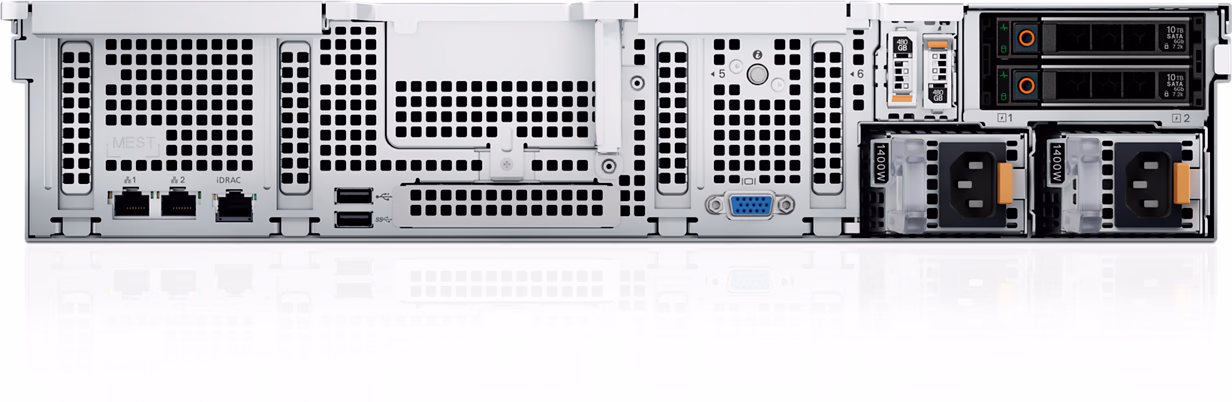

Networking is a strong point of the Dell PowerEdge R760xs , featuring a Broadcom 5720 Dual Port 1Gb On-Board LOM and an additional Broadcom 5720 Quad Port 1GbE BASE-T Adapter (OCP NIC 3.0). This dual networking capability provides redundancy and high availability, ensuring that network performance is consistent and reliable, which is essential for business continuity.

Management and Security

The Dell PowerEdge R760xs is equipped with iDRAC9 Enterprise, offering robust remote management capabilities. This feature allows IT administrators to monitor system health, apply firmware updates, and troubleshoot remotely, which reduces the need for physical access to the server and enhances operational efficiency.

Security is prioritized with built-in features designed to protect sensitive data and ensure compliance. The server supports secure boot options and advanced authentication methods, safeguarding against unauthorized access.

Power and Cooling

The Dell PowerEdge R760xs features a dual redundant hot-plug power supply rated at 1100W Titanium. This configuration ensures that the server continues to operate even if one power supply fails, thereby minimizing downtime and maintaining operational continuity. The power supplies operate efficiently within a wide voltage range (100-240Vac), making them adaptable to different data center environments.

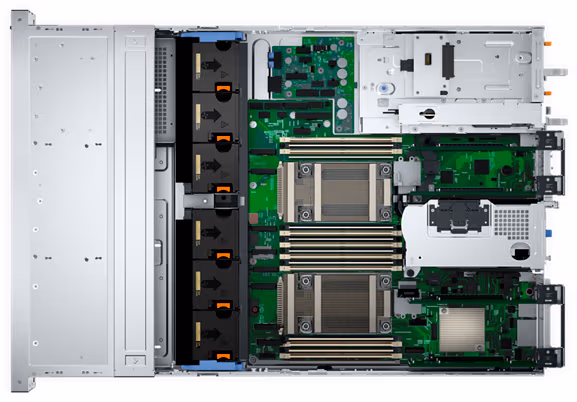

The server’s cooling system is engineered for optimal airflow, maintaining safe operating temperatures for all components, which is crucial for reliability and performance longevity.

Support and Warranty

To ensure ongoing performance and minimize operational disruptions, the PowerEdge R760xs comes with a 3-Year Parts Only Support warranty. This service provides businesses with access to essential components and technical support when needed, helping to keep the server running smoothly.

The Dell PowerEdge R760xs Rack Server is an excellent choice for organizations seeking a high-performance, reliable server solution. Its advanced specifications, flexible storage options, and robust management capabilities make it suitable for a wide range of applications.

For more information about the Dell PowerEdge R760xs and to explore additional IT solutions, visit Radox.

Conclusion

The Dell PowerEdge R760xs is a powerful and versatile rack server tailored to meet the demanding needs of contemporary businesses. With its impressive specifications, advanced management tools, and scalable design, it provides a reliable platform for various applications, making it an invaluable addition to any IT infrastructure. Whether handling virtualization, databases, or high-demand applications, the R760xs is built to deliver exceptional performance and reliability.
